OPENING ANGLE: 45 Degree
CUP DIAMETER: 1-3/4″.
CUP DEPTH: 1/2″.
SUITABLE DOOR THICKNESS: 3/5″-1″
PLATE SCREW CENTER: 1-2/5″.
MATERIAL: Cold Rolled-Steel.
FINISH: Nickel Plated.
CLOSING TYPE: Soft/Self Close.
NOTE: Our hinges are for frameless cabinets.
ADJUSTMENT: 3-way adjustable: Side (±2 mm), Depth(±2 mm) and Height (± 2 mm)
High-quality mechanism slowly pulls the door to a closed position with a smooth silent motion. Reduced closing speed keeps you out from unwanted sounds in the kitchen.

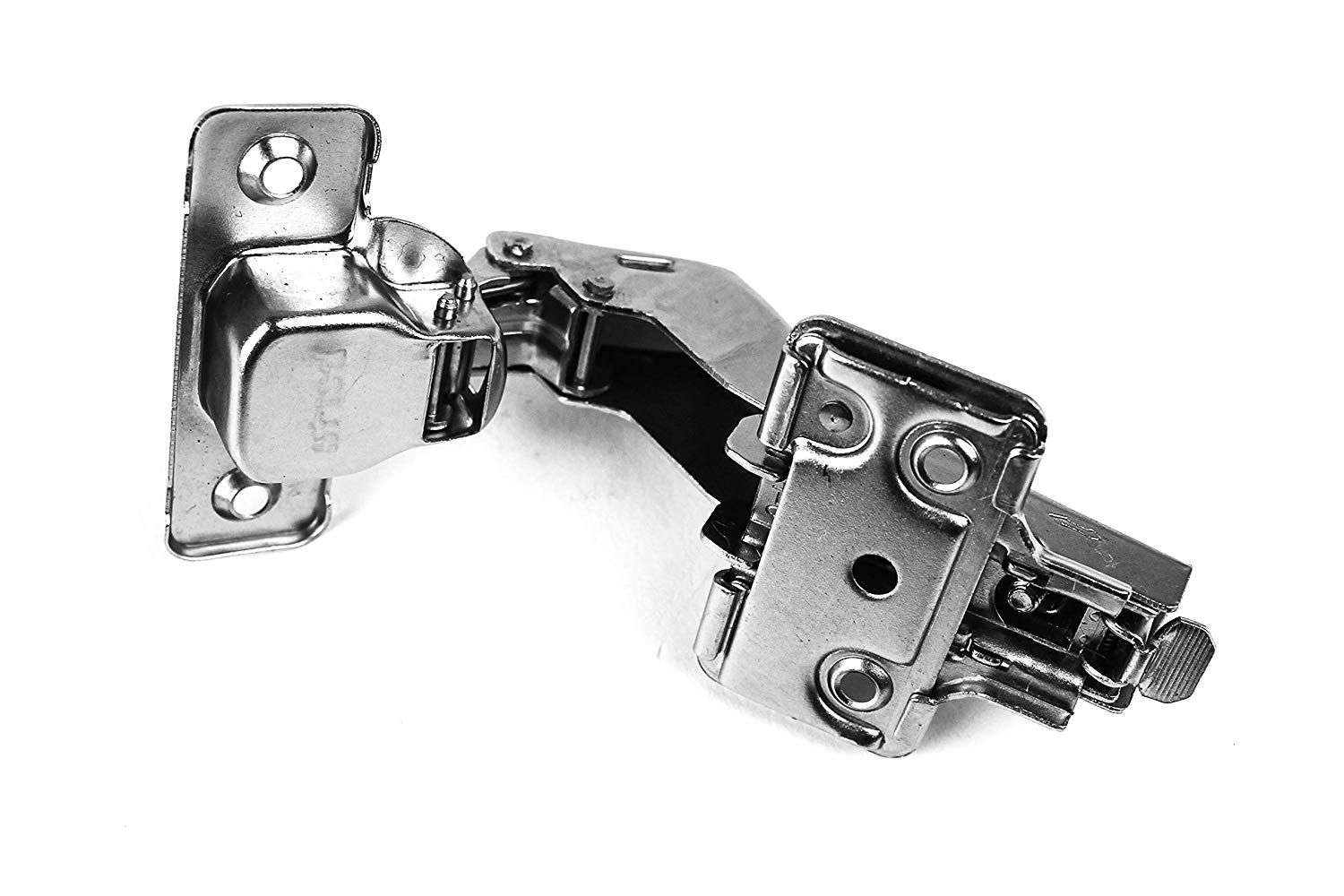

* Diagonal frameless wall cabinets are a popular and effective way to maximize storage space and style in the corner of your kitchen or bathroom. However, their design places the door and sides at a 45-angle rather than the standard 90-degree angle, which means standard hinges just won’t do. Our diagonal concealed hinges are specially designed for these cabinets so you can enjoy all their benefits while having a working door.
INCLUDES MATCHIQUICK AND EASY INSTALLATION: The clip-on plate, 3-way adjustments on the hinge and 2-way adjustments on the base allow faster and more efficient installation. The 2-way adjustment on the base allows you to adjust the door height after installation, great for DIY jobs or contractors
